MF-50F: Natural Gas-Powered Air-Cooled Mining Solution

The MF-50F mining container is a powerhouse designed for efficiency and scalability.

Equipped with two 250kW natural gas generators, it delivers reliable energy for 140 air-cooled mining slots, ensuring optimal performance for Bitcoin, Ethereum, and other crypto mining operations.

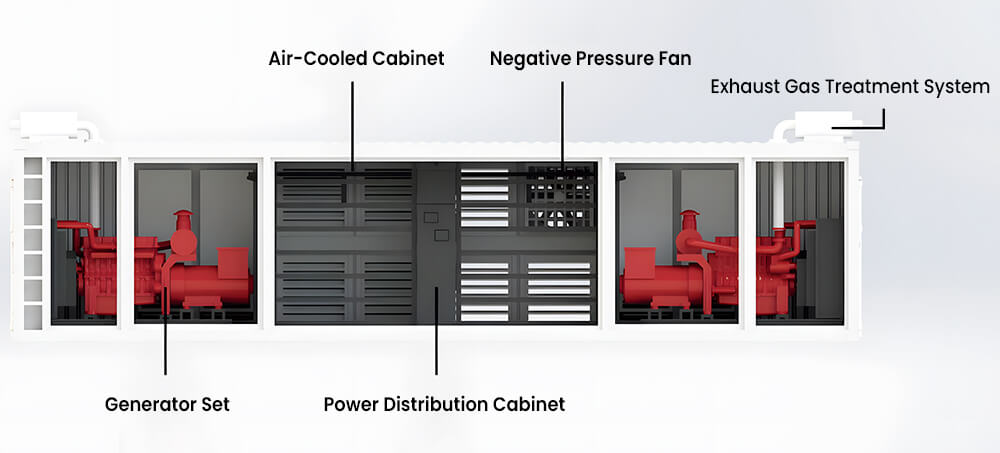

Its integrated network and ventilation systems streamline setup and maintenance, making it a plug-and-play solution.

Built to thrive in colder climates like Canada and Russia, theMF-50F maximizes energy efficiency and reduces operational costs.

Number of machines	140
Continuous Power	250kW x 2
Standby Power	300kW x 2
Frequency	50/60 Hz
Voltage	400V/480V
Fuel	Natural Gas / Associated Gas / Coal Mine Gas / Biogas

Key Features

1. MF-50F 500kW Solution: Fueled by natural gas, offering a cost-effective, eco-friendly power source with consistent performance.

2. 140-Unit Air-Cooled Container: Engineered for high-capacity mining, featuring advanced air-cooling technology to ensure stable temperatures and protect your equipment.

3. Plug-and-Play Design: Simplifies setup and minimizes downtime, allowing you to scale operations seamlessly.

4. Durability & Mobility: Rugged construction with easy transport capabilities, ideal for remote or rapidly expanding mining sites.

Specifications

1. AP-50F

Size	1219224382896（LWHmm,±5mm)
Rack	14 Rows and 10 Columns Per Group
Input Voltage	Three-phase 380-480V 50/60Hz
Continuous Power	Three-phase 380-480V 50/60Hz
Max Power Load	630 kW
Ambient Temperature	-25°C~35°C
Capacity	140 units Antminers (Support Customization)
Network	6100M 24bps Ethernet Switch
Cooling System	Air Cooling
Input Voltage	Three-phase 350-480V 50/60Hz
Output Voltage	Three-phase 350-480V 50/60Hz
Certification	ETL
Cooling Capacity	550kW (-30°-45°)
Input Voltage	Three-phase 350-480V 50Hz/60Hz
Power Consumption	0.75kW *8
Noise	<105dB(A)@10m

2. Generator Set

Engine Brand	Geely
Engine Model	MF-25
Number of Cylinders	6
Bore/Stroke	129×165 mm
Displacement	12.94 L
Compression Ratio	10.5:1
Rated Speed	1500/1800 r/min
Intake Type	Turbocharged and Intercooled
Cooling Method	Closed-loop forced water cooling
Lubrication Method	Pressurized and splash lubrication
Oil Pressure	2.5 bar–5.8 bar
Oil Temperature	≤105°C
Oil Capacity	32 L
Firing Order	1-5-3-6-2-4
Crankshaft Rotation	Counterclockwise
Fuel Intake Pressure	5 kPa

3. Engine

Brand	Geely
Model	HMT13F.408 30
Continuous Power	250KW
Rated Current	450A
Rated Frequency	50/60Hz
Power Factor	0.8
Starting Method	DC 24V Electric Start
Speed Control Method	Electronic Speed Control
Fuel Control Method	Lean Burn, Closed-Loop Control
Ignition Method	High-Voltage Spark Plug Ignition
Generator Set Operation Mode	One-Key Auto Start
Oil Consumption Rate	≤0.3g/kWh
Noise	10 meters ≤ 101 dB(A)
NOx Emissions	1.347g/kWh
Electrical Efficiency	35%
Thermal Efficiency	47%
Electrical Certification	ETL
Generator Set Dimensions	3100X1330X1590mm
Generator Set Weight	3140kg
Number of Phases and Connection Method	Three-Phase Four-Wire, Star Connection
Cooling Method	Pen-type Circulating Forced Water Cooling
Air Source Inlet Pressure	0.4Mpa
Air Source Outlet Pressure	5-10Kpa

4. Generator

Generator Brand	Stanford generator
Model	XSA4E
Number of Phases	Three-Phase Four-Wire
Insulation Class	H
Protection Level	IP23
Excitation Method	Brushless Excitation
Continuous Power	250 kW
Rated Speed	1500/1800 r/min
Frequency	50/60 Hz
Voltage	400 V
Current	450 A
Waveform	Sine Wave
